OEM:S796

No.46540-20080

S796 is a generic aftermarket number, primarily corresponding to a rear brake shoe .

Характеристики

Location:

Rear Axle

Diameter:

172mm

Width:

32mm

Pcs In Set:

Quality Certification:

ISO9001/CCC/IATF16949

Description

🔧 Product Positioning & Applications

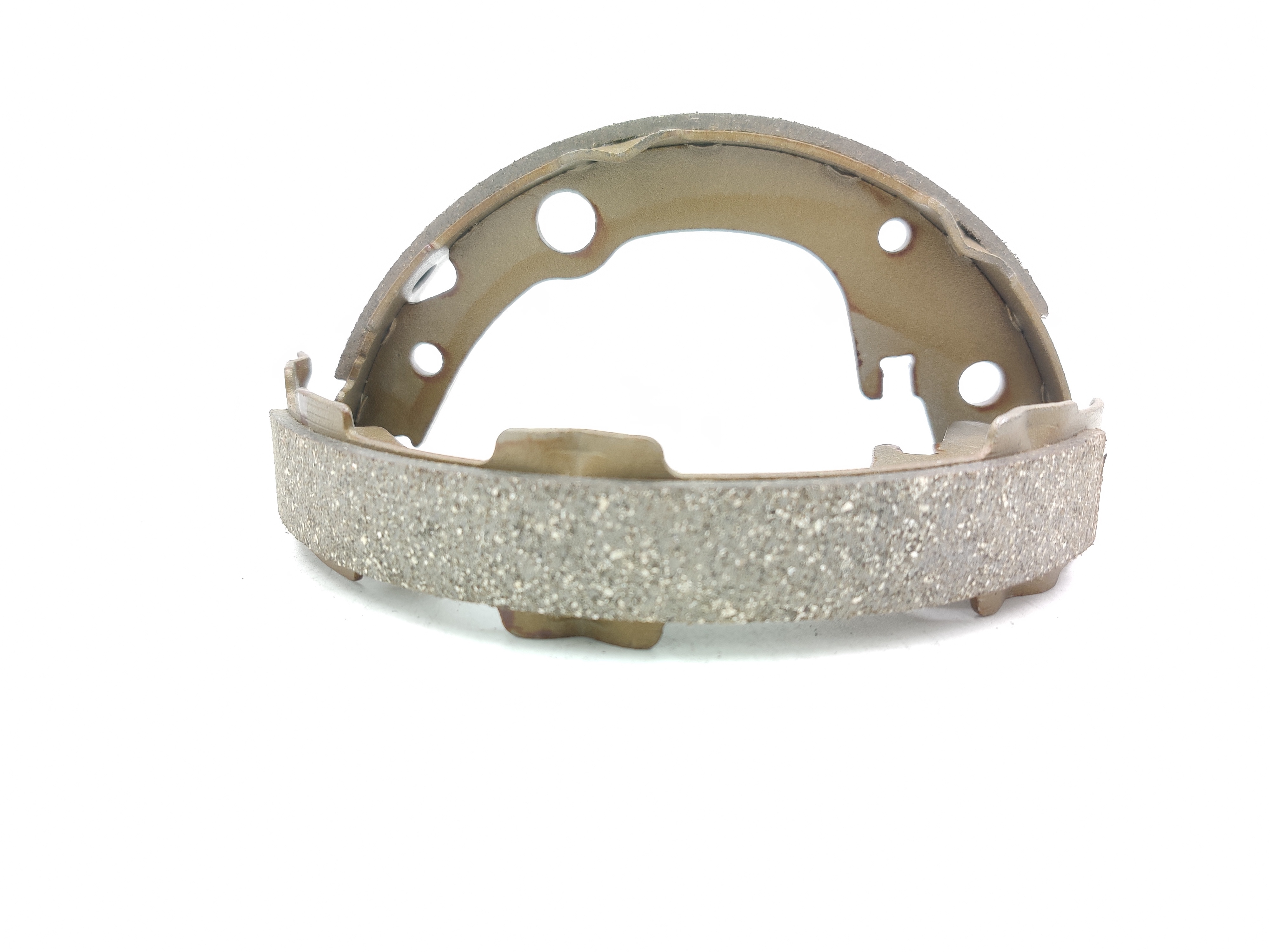

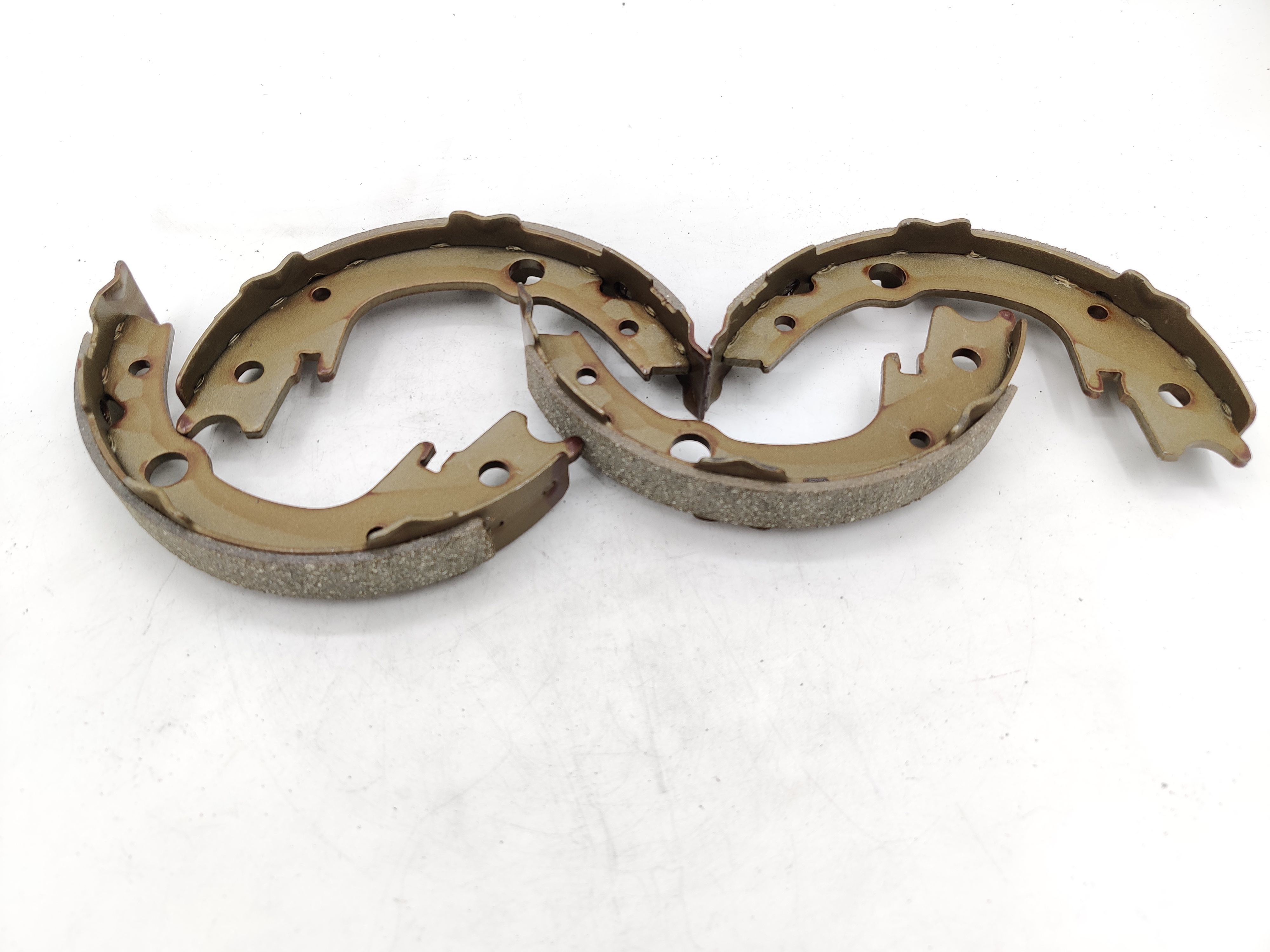

Product Name: Rear Brake Shoe / Parking Brake Shoe

Installation Position: Rear Axle

📏 Two Main Specifications Based on mainstream data, S796 exists in two distinct specifications:

Specification A (Mainstream)

Product Form: Rear brake shoe

FMSI Number: 1536-S796

Brake Drum Inner Diameter: Approx. 174.24 mm (6.86 inches)

Lining Width: Approx. 32 mm (1.26 inches)

Thickness: 3.73 mm (0.147 inches)

Handbrake Lever Included: Varies by brand (OE‑matching)

Weight / Set: Approx. 0.79 kg

Specification B (Parking Brake)

Product Form: Parking brake shoe

FMSI Number: —

Brake Drum Inner Diameter: Approx. 228.6 / 229 mm (9 inches)

Lining Width: Approx. 42 mm / 45 mm (1.65 – 1.77 inches)

Thickness: 7 mm

Handbrake Lever Included: Most do not include

Weight / Set: Approx. 1.6 – 1.89 kg

🚗 Compatible Vehicles

S796 fits:

Pontiac: Vibe (2003–2008)

Scion: tC (2005–2010)

Toyota: Celica (2000–2005), Corolla (2005–2009), Matrix (2003–2008), Land Cruiser (select years)

Other (cross‑reference): Alfa Romeo, Fiat, Citroën, Peugeot, etc.

💡 Purchasing & Installation Tips

Verify Dimensions: Always measure the old part. Confirm whether you need the mainstream size (174.24 mm × 32 mm) or the larger size (229 mm × 45 mm). Specifications are not interchangeable.

Check Kit Contents: Some do not include the parking brake lever or hardware; you may need to reuse old parts or purchase separately.

Replace in Pairs: To ensure balanced braking on the rear axle, always replace all 4 shoes on both sides together. One standard set meets this requirement.

Inspect Brake Discs: When replacing shoes, inspect the drum surface (inside the rear disc) for excessive wear or grooves. Damage requires replacement of the entire brake disc assembly.

Verify with VIN: Because S796 covers widely different dimensions, the most reliable method is to provide the vehicle VIN (chassis number) to a professional supplier.
